FOR
SALE:

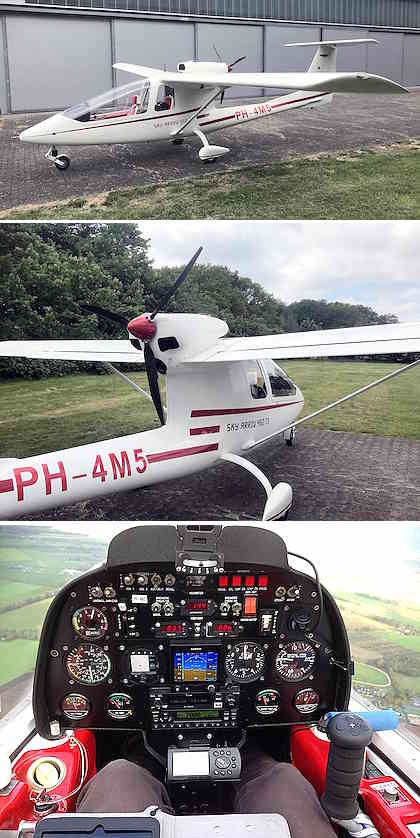

Sky Arrow microlight airplane 2 seater
tandem
Type: Ultralight » Three-axis Sky Arrow 450 TS - PH-4M5
Manufacturing year: 2007.
Built by 3I-INIZIATIVE INDUSTRIALI ITALIA / Magnaghi
Aeronautica, Napoli.
Landing gear: Tricycle with front wheel mudguard and 2 main
wheel fairings.
Engine: Rotax 912 ULS 100HP.
Engine Hours Frame 1850 h.
Propeller: Tripala Warp Drive PVT Fixed pitch.
| Flight Instruments: |
Altimeter, Airspeed indicator, Variometer, Compass,
slip indicator. |
| Navigation: |
ELT 406MHz Ameri-King Corp, GPS Garmin 196 LCD,
horizon Garmin G5. |
| Communication: |
Transponder mode S Garmin GTX 330, Icom VHF air band
transciever IC-A210E, 25/8.33kHz, Headset: Sennheiser
HMEC 200 NoiceGard. |
| TCAS: |
Powerflarm-core with ADSB-in, transponder antenna,
wifi air connect, air trafic display ATD-57. |
| Engine
Instruments: |
Tachometer, oil pressure,
oil temperature, coolingwater temperature, motor
operatinghour meter, fuel level indicator 1/8,
carborator heating. |
| Battery: |
12V Varta 14AH, 190A YB14-B2, new april 2021
with battery charger. |
| Rangiermover: |
250kg frontwheel, Livejacket Survivor inflatable. |
Jaxida dust cover cockpit with logo PH4M5, tools and cart
Special Certificate of Airworthiness 07.12.2025, insurance
13.05.2025
Additional Info: Electric start, enclosed cabin with heating
and antifog ventilation, headsets, Hydraulic brakes, intercom,
strobe lights, dual control, never damaged, electric fuel
pump, radio, always parked in hangar, cover, electric trim,
presently hangered in Goch - Asperden EDLG.
Sky Arrow 450T Performance Data
| Horsepower: |
100 hp |
| Range: |
324 nm 600 km |
| Cruise: |
90 kts 167 kmh |
| Fuel
consumption: |
12-15 literperhour |
| Stall: |
33 kts 61 kmh |
| Climb: |
1,000 ft/min 5.1 m/sec |
| Ceiling: |
13,000 ft 3,962 m |
| Takeoff
Distance: |
360 ft 110 m |
| Landing
Distance: |
300 ft 91 m |
| Gross
Weight: |
990 lbs 449 kg |
| Empty
Weight: |
638 lbs 289 kg |
| Useful
Load: |
352 lbs 160 kg |
| Wingspan: |
31.4 ft 9.57 m |
| Length: |
24.75 ft 7.54 m |
| Height: |
8.3 ft 2.53 m |
|
|
